Size Press Coater

Equipment Class: | Coatings / Solids Testing |
Brand: | Mathis Textile |
Model Number: | HVF64303 |
Serial Number: | 84303 |
Stock Number: | 800875 |
Description: |

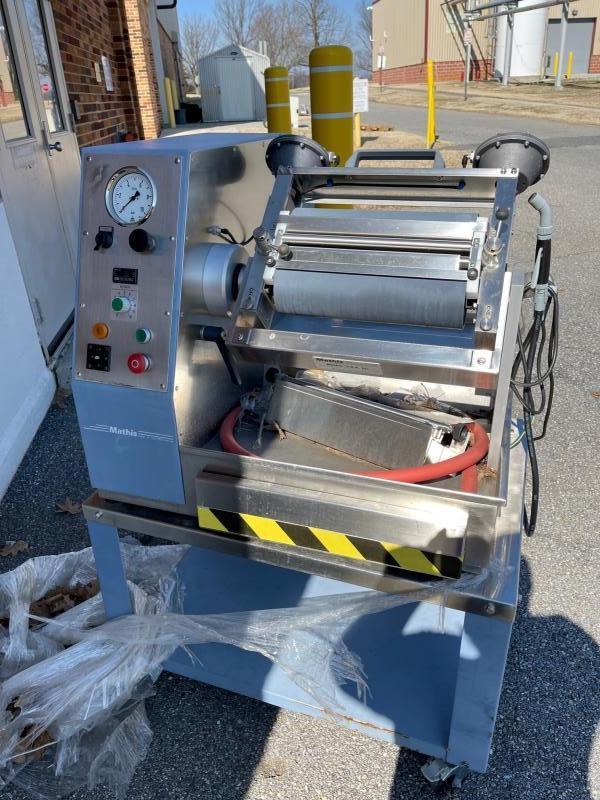

The Mathis horizontal size press is a Swiss built quality air loaded press, that is easy to use and clean up. All wetted surfaces are stainless steel. Power requirement is 220 volt 60 Hz, 1.5 KW supply. Rolls are 110 mm diameter (may be slightly less, due to grinding), 350 mm (14 inches) wide, 70 Shore hardness. speed range is 5-250 meters per minute adjustable.The nip will hold about 300 ml of sizing/coating. Maximum nip pressure is 20 kP/cm. Overall dimensions are 930Wx 830Dx 730H mm. It is designed for vertical sheet feed. It has highly adjustable end dams. A hand shower for washups is included; the whole press assembly can be rotated for easy washup. The whole press weighs about 525 pounds and includes a stand (on wheels ) for easy installation and storage. This is a very high quality size press that is very versatile in the lab. |
Warranty: | One Year parts and labor warranty! |
