| Description: |
-

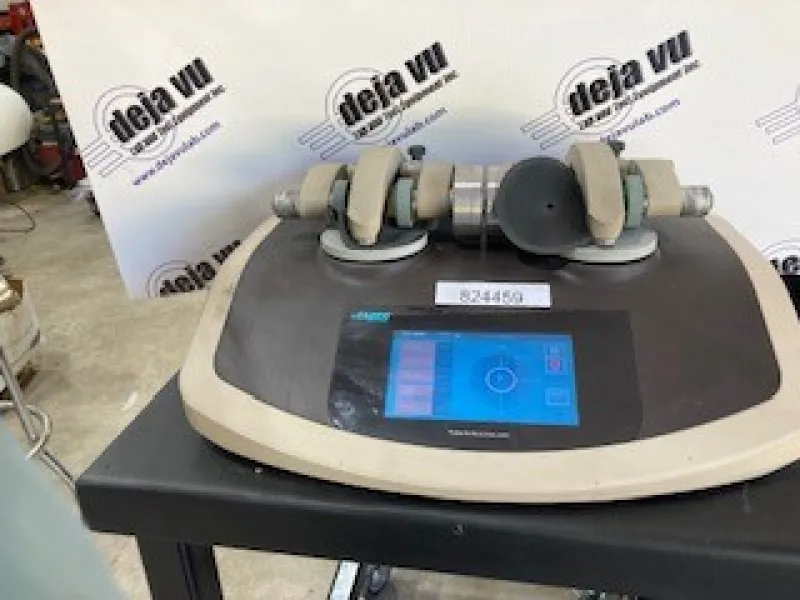

Specimen turntable speed control allows options of both 60 rpm and 72 rpm.
-
Easy-to-use LCD operator touch screen interface with selectable display options (including language selection).
-
Compact abraser arm assemblies provide a standard load of 250 gram on the wheel. Using the auxiliary weights, standard wheel loads of 500 or 1000 grams can be obtained. Please note, the markings on the auxiliary weights are NOT reflective of the actual mass of the additional weight. The auxiliary weights are marked with the TOTAL load that will be exerted on the wheel and equals the combined mass of the abraser arm and auxiliary weights. The weight marked 500 gram is actually 250 grams and the weight marked 1000 gram is actually 750 grams.
-
A Quick Release Mounting Hub permits quick wheel mounting without the need of a locking nut, resulting in increased clearance for the vacuum pick-up nozzle and a larger viewing area for the test specimen. A spring loaded, beveled retaining nut provides a positive locking force on the wheel hub retaining lip making certain that the wheels remain securely fastened until disengaged.
-
Each specimen table includes an independent support frame to which the abraser arm and nozzle assemblies are affixed.
|
