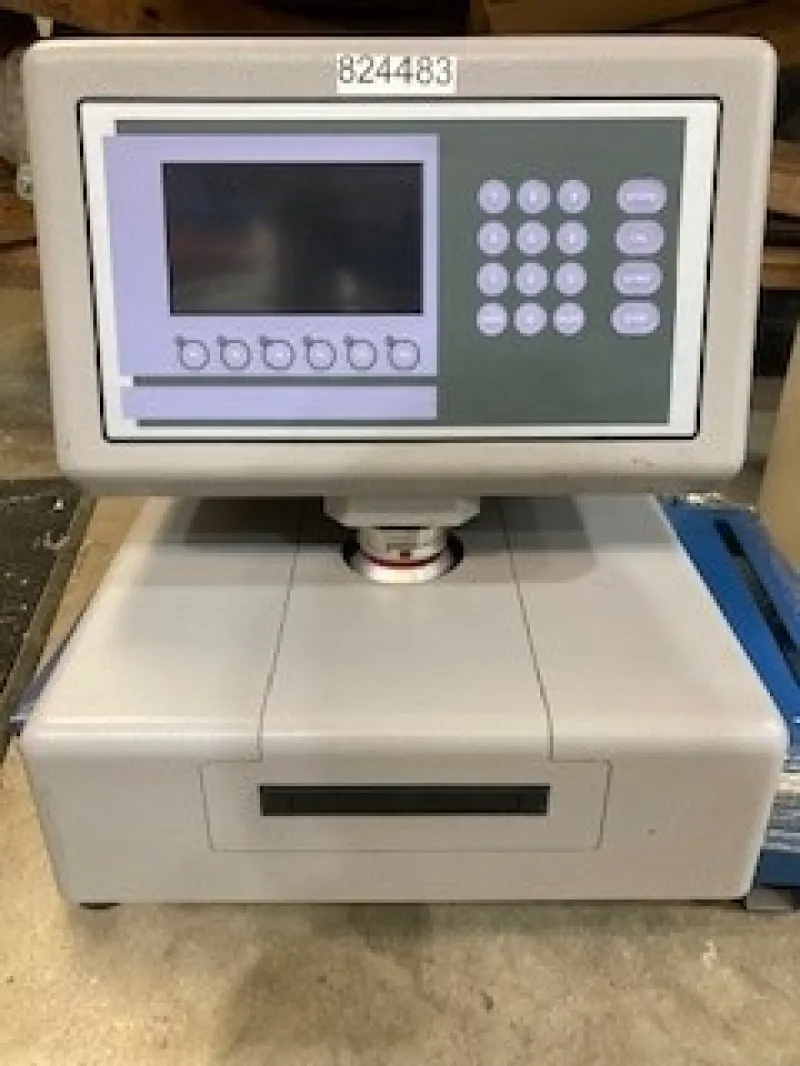

Parker Print Surf Tester

Specifications:

- Roughness range-normal: 0.20 - 6.50µm
- Roughness range-high: 6.0 – 15.0µm
- Air permeance range - ISO 5636/1: 0 – 14.5µm.Pas
- Air permeance range – Bendtsen equivalent: 0-10000ml/min
- Air permeance range- Gurley equivalent: 1-6000s
- Clamp pressures – preset: 500, 1000, and 2000kPa
- Clamp pressures – custom setting: 100 – 5000kPa
- Conforms to ISO 8791/4 and TAPPI T555

Applications:
Suitable for fine paper, coated paper, newsprint, coated board, linerboard, films and foils, printing/graphics, packaging, and carton board.

Connections:
- Electrical: 110VAC, 60Hz, 150VA or 220 VAC, 50Hz, 150VA
- Air: 550-700 kPa (instrument quality)

Instrument Features:
The Parker Print-Surf is a microprocessor-controlled instrument designed for high-speed, precision measurements of paper surface roughness. It simulates printing conditions by clamping the specimen between a measuring head and a backing assembly, measuring airflow resistance, and converting it to a roughness value in micrometers. The instrument offers extended clamp pressure and measurement capabilities, with a dual-head option for increased efficiency.

Dimensions:
- Depth: 558mm (22in)
- Height: 430mm (17in)
- Width: 380mm (15in), 476mm (18.7in) for dual head model

Additional Features:
- Large, clear LCD Display
- Membrane keypad operation
- Dust purger
- Automatic specimen detection
- One-touch statistics display
- Built-in diagnostic and calibration routines
- Dual range for rougher samples
- Measures roughness on both sides or roughness/air permeance simultaneously (Dual Head Model only)

Optional Accessories:
Calibration disc set, Thermal mini-printer, Test-Link data acquisition software
