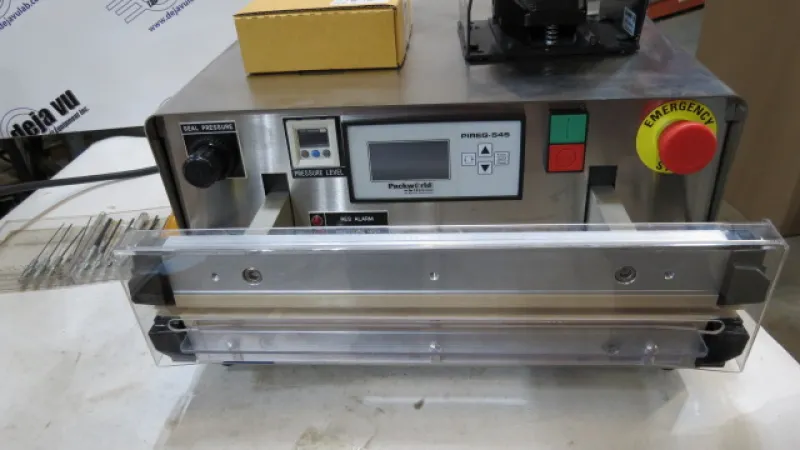

Packworld Heat sealer

Packworld Heat sealer - This PackworldUSA Impulse Heat Sealer is specifically designed to provide quality results and reliable performance for heat sealing of plastics and heat sealable composites in a production environment or Research Development.  It is ideal for materials testing and quantifying the optimum heat sealing parameters for heat seal or heat seal/cut applications. It is also  convenient and easy to operate either manually or by foot switch.  It provides consistent and repeatable results, every time— heat seal after heat seal.     Product Details   Models PW3116  Applications Medical Devices • Pharmaceuticals • Cosmetics • Liquid Packaging • Samples or Specimens • Research Development • Electronics Standard Features Compressed air outlet • Digital Air pressure regulator and gauge and alarms • Low pressure closing/high pressure heat sealing • Stainless steel case • Single or double band heat seal operation • Quick and easy change over of heatseal bands • Emergency stop button • Foot Pedal Activation Benefits Calibration made simple • Precise and repeatable heat sealing control • Ease of operation • Adaptable to a wide variety of uses • Maintenance Free • Safety Assured Options Data Capture with USB connection and PC Software • NIST traceable calibration • Adjustable Table for exact product placement • Jaw modifications for water cooling • High Temperature Application Set-up • CE Compliance Specifications Power: 2.2kva @ 115V, 20amp (220V optional) • Timer: 0 - 99.9 sec. Temperature Range: 0 - 500°C • Heat Seal Bar Length: 16" and 24" • Jaw Force: 0 - 1000 lbs. • Size: 18" x 18" x 10" • Shipping Weight: 90 lbs. • Air Requirements: 80 - 100 psig

Equipment Class:Physical Testing
Brand:Packworld
Model Number:3344-20
Serial Number:PW3116-545-5-22-06-D
Stock Number:824487
Description:

This PackworldUSA Impulse Heat Sealer is specifically designed to provide quality results and reliable performance for heat sealing of plastics and heat sealable composites in a production environment or Research & Development.

It is ideal for materials testing and quantifying the optimum heat sealing parameters for heat seal or heat seal/cut applications. It is also  convenient and easy to operate either manually or by foot switch.

 It provides consistent and repeatable results, every time— heat seal after heat seal.




Models PW3116
Applications Medical Devices • Pharmaceuticals • Cosmetics • Liquid Packaging • Samples or Specimens • Research & Development • Electronics
Standard Features Compressed air outlet • Digital Air pressure regulator and gauge and alarms • Low pressure closing/high pressure heat sealing • Stainless steel case • Single or double band heat seal operation • Quick and easy change over of heatseal bands • Emergency stop button • Foot Pedal Activation
Benefits Calibration made simple • Precise and repeatable heat sealing control • Ease of operation • Adaptable to a wide variety of uses • Maintenance Free • Safety Assured
Options Data Capture with USB connection and PC Software • NIST traceable calibration • Adjustable Table for exact product placement • Jaw modifications for water cooling • High Temperature Application Set-up • CE Compliance
Specifications Power: 2.2kva @ 115V, 20amp (220V optional) • Timer: 0 - 99.9 sec. Temperature Range: 0 - 500°C • Heat Seal Bar Length: 16" and 24" • Jaw Force: 0 - 1000 lbs. • Size: 18" x 18" x 10" • Shipping Weight: 90 lbs. • Air Requirements: 80 - 100 psig
Accessories:

Spare elements and release teflons included. Foot Switch is included. Power requirement is 20 amps at 120 Volts AC.

Literature Available:

Complete manual included.

Warranty:One Year parts and labor warranty!


For more information call us at 902-529-2399 or email info@dejavulab.com
